| DN | Hose ID | Wire OD | Hose OD | W.P(working pressure) | B.P(burst pressure) | Minimum Bend Radius | Weight | |||
| inch | mm | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m | |
| 10 | 3/8 | 9.5 | 17.2 | 20.3 | 27.5 | 4000 | 110.3 | 16000 | 125 | 0.62 |
| 13 | 1/2 | 12.7 | 20.7 | 23.8 | 27.5 | 4000 | 110.3 | 16000 | 180 | 0.85 |
| 16 | 5/8 | 15.9 | 24.6 | 27.4 | 27.5 | 4000 | 110.3 | 16000 | 200 | 1.29 |
| 19 | 3/4 | 19.0 | 27.7 | 30.7 | 27.5 | 4000 | 110.3 | 16000 | 240 | 1.47 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 27.5 | 4000 | 110.3 | 16000 | 300 | 2.00 |
| 32 | 1-1/4 | 31.8 | 43.9 | 47.0 | 20.7 | 3000 | 82.7 | 12000 | 420 | 2.86 |
| 38 | 1-1/2 | 38.1 | 50.4 | 53.5 | 17.2 | 2500 | 68.9 | 10000 | 500 | 3.24 |
| 51 | 2 | 50.8 | 63.7 | 66.7 | 17.2 | 2500 | 68.9 | 10000 | 630 | 4.80 |

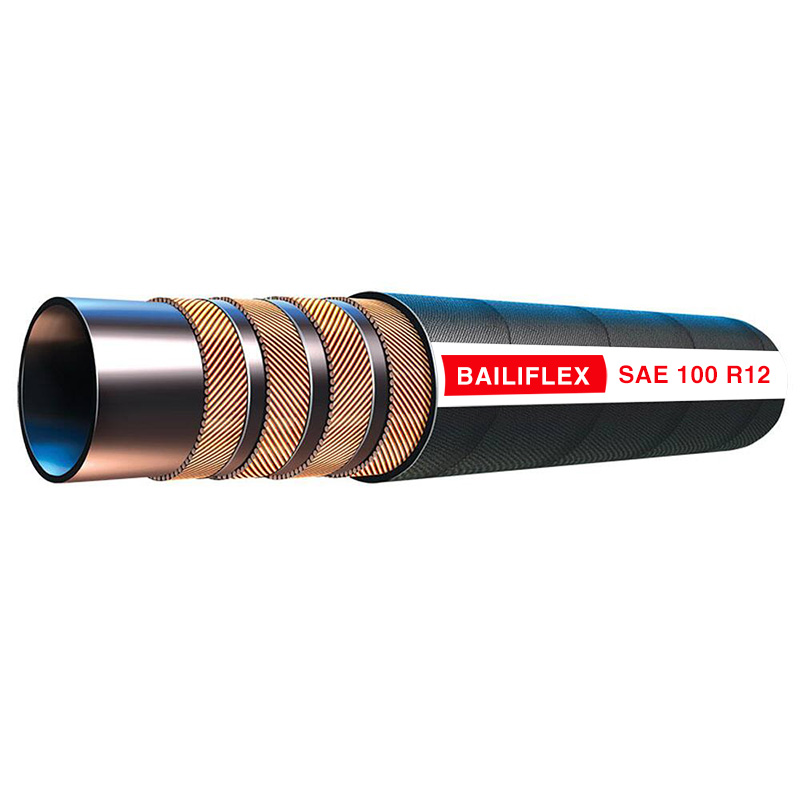

SAE 100 R12
INNER TUBE: oil resistant synthetic rubber
REINFORCEMENT: four spirals of high tensile steel wire
COVER: abrasion and weather resistant synthetic rubber
TEMPERATURE RANGE:-40℃ to +125℃
