Hose ID | Hose OD | W.P(working pressure) | B.P(burst pressure) | Min Bend Radius | Weight | |||
inch | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m |
3/16 | 4.8 | 12.7 | 10.5 | 1520 | 42 | 6500 | 75 | 0.16 |
1/4 | 6.4 | 14.3 | 8.7 | 1350 | 34.8 | 5300 | 75 | 0.19 |
5/16 | 7.9 | 17.5 | 8.4 | 1300 | 33.6 | 5200 | 100 | 0.26 |
3/8 | 9.5 | 19.0 | 7.8 | 1200 | 31.2 | 4840 | 100 | 0.28 |
1/2 | 12.7 | 23.8 | 7.0 | 1080 | 28 | 4340 | 125 | 0.40 |
5/8 | 15.9 | 27 | 6.1 | 945 | 24.4 | 3780 | 140 | 0.55 |
3/4 | 19.0 | 31.8 | 5.2 | 800 | 20.8 | 3220 | 150 | 0.69 |
1 | 25.4 | 38 | 3.9 | 600 | 15.5 | 2420 | 205 | 0.82 |
1-1/4 | 31.8 | 44.4 | 2.6 | 400 | 10.4 | 1610 | 250 | 1.00 |

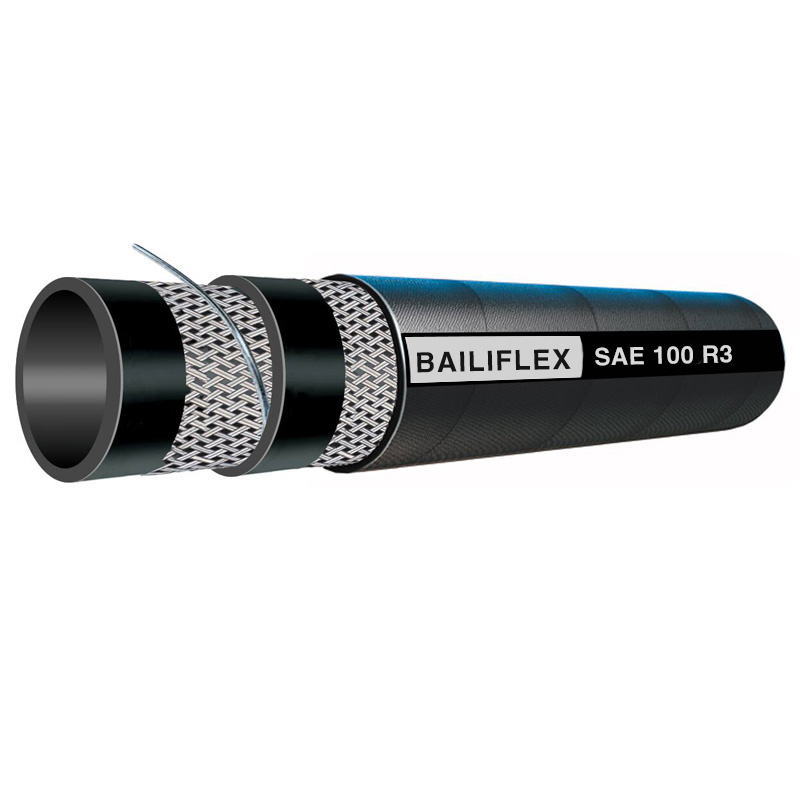

SAE 100R3
INNER TUBE: oil resistant synthetic rubber
REINFORCEMENT: double high tensile fibre braids
COVER: abrasion and weather resistant synthetic rubber
TEMPERATURE RANGE:-40℃ to+100℃
